Description
OPV Part#: F3LJ07
Pipe Size: 1-1/4″

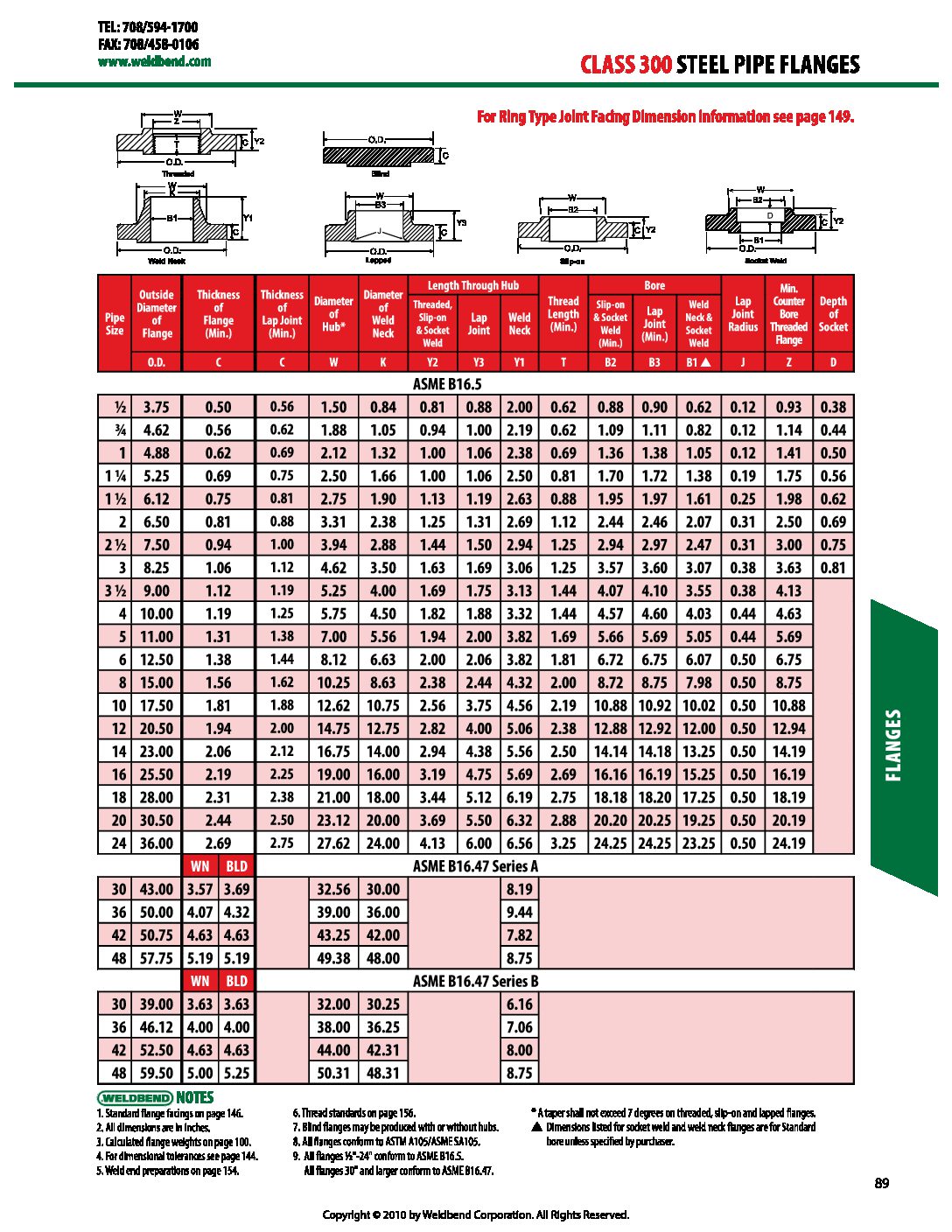

Outside Diameter Flg: 5.25
Thickness of Flg “C” (MIN): 0.69
Diameter of Hub* “W”: 2.50
Length through Hub “Y3”: 1.06
Bore “B3”: 1.72
Lap Joint Radius: 0.19

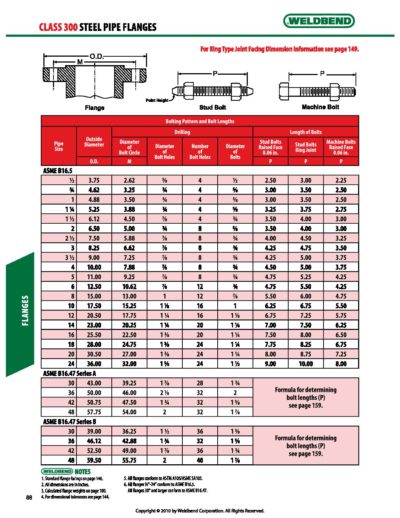

Dia. of Bolt Circle: 5.25
Dia. of Bolt Holes: 3/4
# of Bolt Holes: 4
Dia. of Bolts: 5/8
Stud Bolt Length 3.25
Machine Bolt Length: 2.75
Approx. Weight: 4.50
*Taper shall not exceed 7 degrees on threaded, slip-on and lapped flanges.
